Getting started¶
In this tutorial, we will deploy and run the SD-Core 5G core network using Juju and Terraform. As part of this tutorial, we will also deploy additional components (gNB Simulator - a 5G radio and a cellphone simulator, SD-Core Router - a software router facilitating communication between the core and the Radio Access Network (RAN)) to simulate usage of this network. Both gNB Simulator and SD-Core Router serve only demonstration purposes and shouldn’t be part of production deployments.
To complete this tutorial, you will need a machine which meets the following requirements:
A recent
x86_64CPU (Intel 4ᵗʰ generation or newer, or AMD Ryzen or newer)At least 4 cores
8GB of RAM
50GB of free disk space
1. Install MicroK8s¶
From your terminal, install MicroK8s:
sudo snap install microk8s --channel=1.27-strict/stable
Add your user to the snap_microk8s group:
sudo usermod -a -G snap_microk8s $USER
newgrp snap_microk8s
Add the community repository MicroK8s addon:
sudo microk8s addons repo add community https://github.com/canonical/microk8s-community-addons --reference feat/strict-fix-multus
Enable the following MicroK8s addons. We must give MetalLB an address range that has at least 3 IP addresses for Charmed 5G.
sudo microk8s enable hostpath-storage
sudo microk8s enable multus
sudo microk8s enable metallb:10.0.0.2-10.0.0.4
2. Bootstrap a Juju controller¶
From your terminal, install Juju.
sudo snap install juju --channel=3.4/stable
Bootstrap a Juju controller
juju bootstrap microk8s
Note
There is a bug in Juju that occurs when
bootstrapping a controller on a new machine. If you encounter it, create the following
directory:
mkdir -p /home/ubuntu/.local/share
3. Install Terraform¶
From your terminal, install Terraform.
sudo snap install terraform --classic
4. Create Terraform module¶
On the host machine create a new directory called terraform:
mkdir terraform
Inside newly created terraform directory create a terraform.tf file:
cd terraform
cat << EOF > terraform.tf
terraform {
required_providers {
juju = {
source = "juju/juju"
version = "~> 0.11.0"
}
}
}
EOF
Create a Terraform module containing the SD-Core 5G core network, 5G radio and a cellphone simulator and a router:
cat << EOF > main.tf
resource "juju_model" "sdcore" {
name = "sdcore"
}
module "sdcore-router" {
source = "git::https://github.com/canonical/sdcore-router-k8s-operator//terraform?ref=v1.4"
model_name = juju_model.sdcore.name
depends_on = [juju_model.sdcore]
}
module "sdcore" {
source = "git::https://github.com/canonical/terraform-juju-sdcore-k8s//modules/sdcore-k8s?ref=v1.4"
model_name = juju_model.sdcore.name
create_model = false
traefik_config = {
routing_mode = "subdomain"
}
depends_on = [module.sdcore-router]
}
module "gnbsim" {
source = "git::https://github.com/canonical/sdcore-gnbsim-k8s-operator//terraform?ref=v1.4"
model_name = juju_model.sdcore.name
depends_on = [module.sdcore-router]
}
resource "juju_integration" "gnbsim-amf" {
model = juju_model.sdcore.name
application {
name = module.gnbsim.app_name
endpoint = module.gnbsim.fiveg_n2_endpoint
}
application {
name = module.sdcore.amf_app_name
endpoint = module.sdcore.fiveg_n2_endpoint
}
}
resource "juju_integration" "gnbsim-nms" {
model = juju_model.sdcore.name
application {
name = module.gnbsim.app_name
endpoint = module.gnbsim.fiveg_gnb_identity_endpoint
}
application {
name = module.sdcore.nms_app_name
endpoint = module.sdcore.fiveg_gnb_identity_endpoint
}
}
EOF
Note
You can get a ready example by cloning this Git repository.
All necessary files are in the examples/terraform/getting_started directory.
5. Deploy SD-Core¶
Initialize Juju Terraform provider:
terraform init
Deploy 5G network.
terraform apply -auto-approve
The deployment process should take approximately 15-20 minutes.
Monitor the status of the deployment:
juju switch sdcore
watch -n 1 -c juju status --color --relations
The deployment is ready when all the charms are in the Active/Idle state. It is normal
for grafana-agent to remain in waiting state. Example:
ubuntu@host:~$ juju status
Model Controller Cloud/Region Version SLA Timestamp
sdcore microk8s-localhost microk8s/localhost 3.4.0 unsupported 13:40:12+01:00
App Version Status Scale Charm Channel Rev Address Exposed Message
amf active 1 sdcore-amf-k8s 1.4/edge 57 10.152.183.208 no
ausf active 1 sdcore-ausf-k8s 1.4/edge 40 10.152.183.237 no
gnbsim active 1 sdcore-gnbsim-k8s 1.4/edge 43 10.152.183.167 no
grafana-agent 0.32.1 waiting 1 grafana-agent-k8s latest/stable 44 10.152.183.245 no installing agent
mongodb active 1 mongodb-k8s 6/beta 36 10.152.183.156 no Primary
nms active 1 sdcore-nms-k8s 1.4/edge 26 10.152.183.121 no
nrf active 1 sdcore-nrf-k8s 1.4/edge 62 10.152.183.123 no
nssf active 1 sdcore-nssf-k8s 1.4/edge 37 10.152.183.165 no
pcf active 1 sdcore-pcf-k8s 1.4/edge 32 10.152.183.205 no
router active 1 sdcore-router-k8s 1.4/edge 33 10.152.183.49 no
self-signed-certificates active 1 self-signed-certificates latest/stable 33 10.152.183.153 no
smf active 1 sdcore-smf-k8s 1.4/edge 37 10.152.183.147 no
traefik 2.10.4 active 1 traefik-k8s latest/stable 148 10.0.0.4 no
udm active 1 sdcore-udm-k8s 1.4/edge 35 10.152.183.168 no
udr active 1 sdcore-udr-k8s 1.4/edge 31 10.152.183.96 no
upf active 1 sdcore-upf-k8s 1.4/edge 64 10.152.183.126 no
webui active 1 sdcore-webui-k8s 1.4/edge 23 10.152.183.128 no
Unit Workload Agent Address Ports Message
amf/0* active idle 10.1.182.23
ausf/0* active idle 10.1.182.18
gnbsim/0* active idle 10.1.182.50
grafana-agent/0* blocked idle 10.1.182.51 logging-consumer: off, grafana-cloud-config: off
mongodb/0* active idle 10.1.182.35 Primary
nms/0* active idle 10.1.182.2
nrf/0* active idle 10.1.182.53
nssf/0* active idle 10.1.182.48
pcf/0* active idle 10.1.182.46
router/0* active idle 10.1.182.57
self-signed-certificates/0* active idle 10.1.182.56
smf/0* active idle 10.1.182.27
traefik/0* active idle 10.1.182.40
udm/0* active idle 10.1.182.52
udr/0* active idle 10.1.182.39
upf/0* active idle 10.1.182.60
webui/0* active idle 10.1.182.33
6. Configure the ingress¶
Get the IP address of the Traefik application:
juju status traefik
In this tutorial, the IP is 10.0.0.4. Please note it, as we will need it in the next step.
Configure Traefik to use an external hostname. To do that, edit traefik_config
in the main.tf file:
:caption: main.tf
(...)
module "sdcore" {
(...)
traefik_config = {
routing_mode = "subdomain"
external_hostname = "10.0.0.4.nip.io"
}
(...)
}
(...)
Apply new configuration:
terraform apply -auto-approve
Retrieve the NMS address:
juju run traefik/0 show-proxied-endpoints
The output should be http://sdcore-nms.10.0.0.4.nip.io/. Navigate to this address in your
browser.
7. Configure the 5G core network through the Network Management System¶
In the Network Management System (NMS), create a network slice with the following attributes:
Name:
defaultMCC:
208MNC:
93UPF:
upf-external.sdcore.svc.cluster.local:8805gNodeB:
sdcore-gnbsim-gnbsim
You should see the following network slice created:
Create a subscriber with the following attributes:
IMSI:
208930100007487OPC:
981d464c7c52eb6e5036234984ad0bcfKey:
5122250214c33e723a5dd523fc145fc0Sequence Number:
16f3b3f70fc2Network Slice:
defaultDevice Group:
default-default

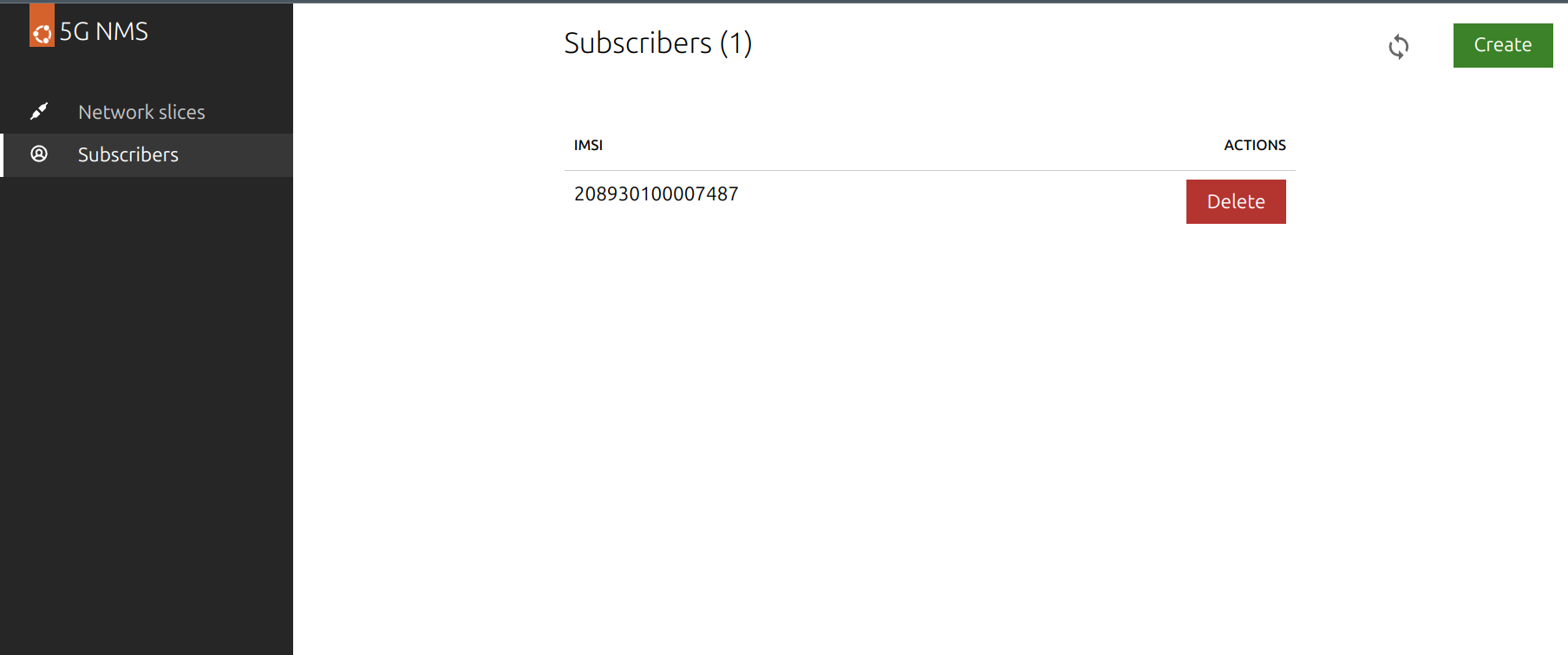

You should see the following subscriber created:
8. Run the 5G simulation¶
Run the simulation:
juju run gnbsim/leader start-simulation
The simulation executed successfully if you see success: "true" as one of the output messages:
ubuntu@host:~$ juju run gnbsim/leader start-simulation
Running operation 1 with 1 task
- task 2 on unit-gnbsim-0
Waiting for task 2...
info: run juju debug-log to get more information.
success: "true"
9. Destroy the environment¶
Destroy Terraform deployment:
terraform destroy -auto-approve
Note
Terraform does not remove anything from the working directory. If needed, please clean up
the terraform directory manually by removing everything except for the main.tf
and terraform.tf files.
Destroy the Juju controller and all its models:
juju kill-controller microk8s-localhost
